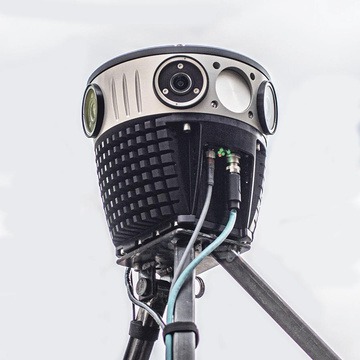

Mosaic 51 is a Robust 360° Camera for Mobile Mapping, Street View, Surveying, Infrastructure Inspection and related 360º imaging applications such as VFX & HDR light probes for CGI backplates.

Designed and built from the ground up to be durable and future proof.

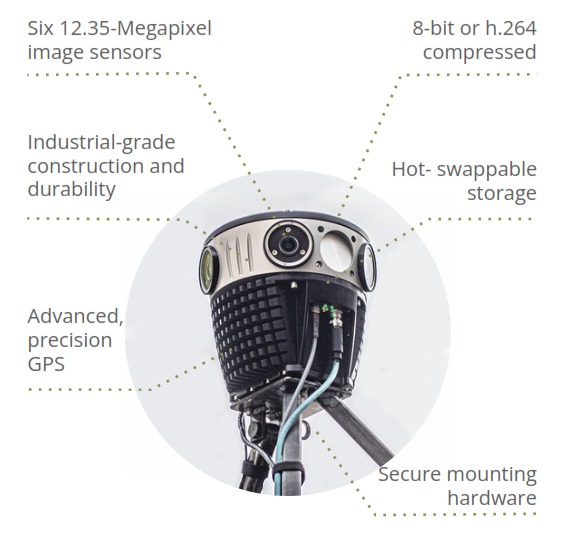

Feature Highlights

• 0fps h.264 (120Mbps per sensor)
• Onboard hot-swappable USB 3.0 storage
• External storage over ethernet via NFS
• Built-in precision GPS +/- 1.5 meter
• Sealed and water-resistant housing
• Protected lens, easily replace lens covers when scratched or smudged
• Data is non-vendor locked

• The 6 Sony image sensors with wide angle lenses capture 360º of RAW image data, which is precisely synchronized by our proprietary algorithm.
• The image data is processed into an 8-bit image file by the ISP and compressed to a high-bitrate h.264 file and written to the removable  USB dongle w/ 1TB SSD.
• Camera system captures and stores precise GPS data and timestamps. The camera can be monitored and controlled via an ethernet connection by any device with a web browser (PC, tablet, or smartphone).
• The main processor combines a powerful CPU plus GPU making it fully mobile no need for any storage devices or computers in the vehicle.
• Hot swappable 1 terabyte SSD (up to 4TB possible) storage guarantees smooth data capture throughout a full day of data capture.

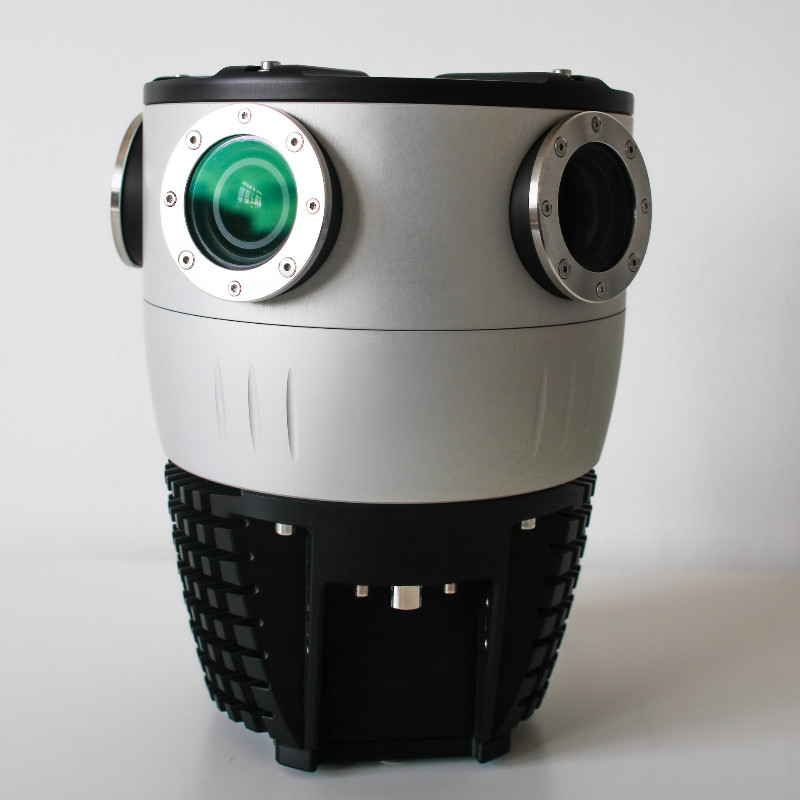

The Mosaic X camera is a cutting-edge solution for high-resolution 360° mobile mapping. Built for speed and precision, it captures detailed imagery and integrates seamlessly with various sensors, including LiDAR and GNSS.

Proudly designed and built in the Czech Republic, it is durable and future-proof to meet the highest industry standards.
